PS-600

The construction of PS-600 involves a robust platform or surface capable of supporting heavy loads. This platform is equipped with durable load cells or sensors that can handle heavy weights. The load cells convert the applied weight into an electrical signal, which is then processed by the weighing machine’s electronics.

Features

Robust Platform
Durable Load Cells
Accurate Weight Conversion
Heavy-Duty Use

Technical Specifications

Power Supply
230 V AC, 50 Hz, +/-10%
Power Consumption
6W (Max)
Platform Size
600 X 600 mm (Checker Plate/SS Top)
Material of Construction
MS/SS
Available Capacity
200 kg, 300 kg

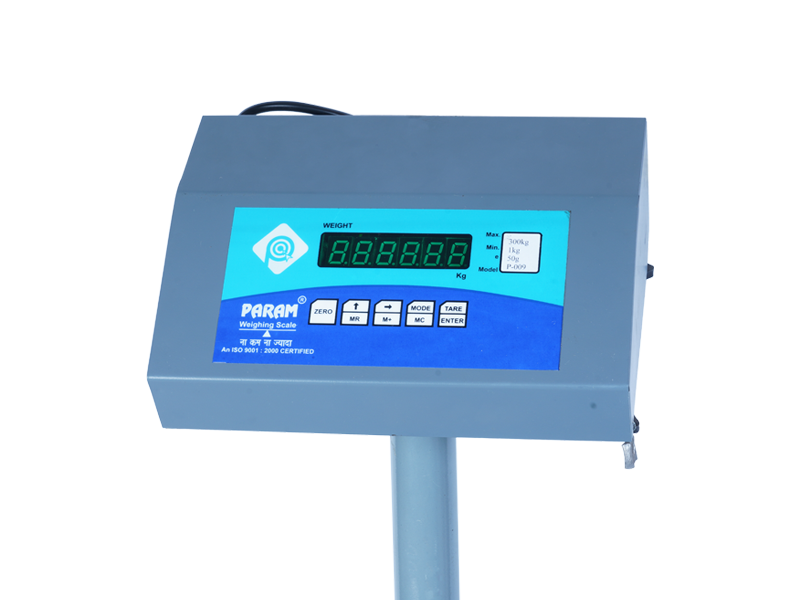

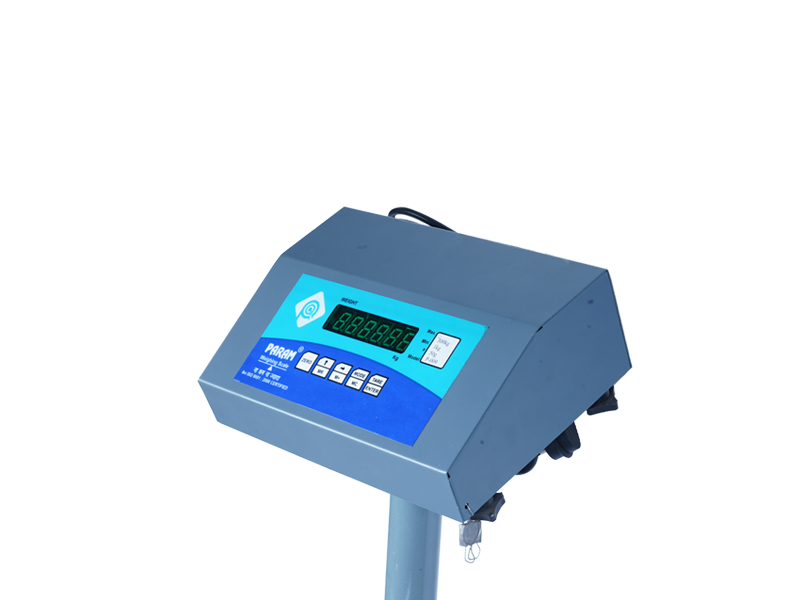

Display Type & Colour
Seven Segment LED Display “Green/Red Display”
Display Digit
6 Digits
Display Size
14.22 mm (0.56”)
Number of Keys
5 keys
Battery Charger
In-built
Dual Display
Optional Extra Display
Battery
Valve Regulated Lead Acid Rechargeable Battery 6V/5.0 Ah
